Guide to use Vendasta SCIM APIs to sync Users

Overview​

System for Cross-domain Identity Management (SCIM) focuses on syncing user accounts and permissions between systems but has an extension system that allows syncing any type of record.

This guide provides the information of

  • To create a service account in Vendasta and authorization token to access Vendasta APIs
  • List of Vendasta SCIM APIs and the way to use it.

Step 1 : Pre-requisites for accessing the Vendasta's SCIM APIs​

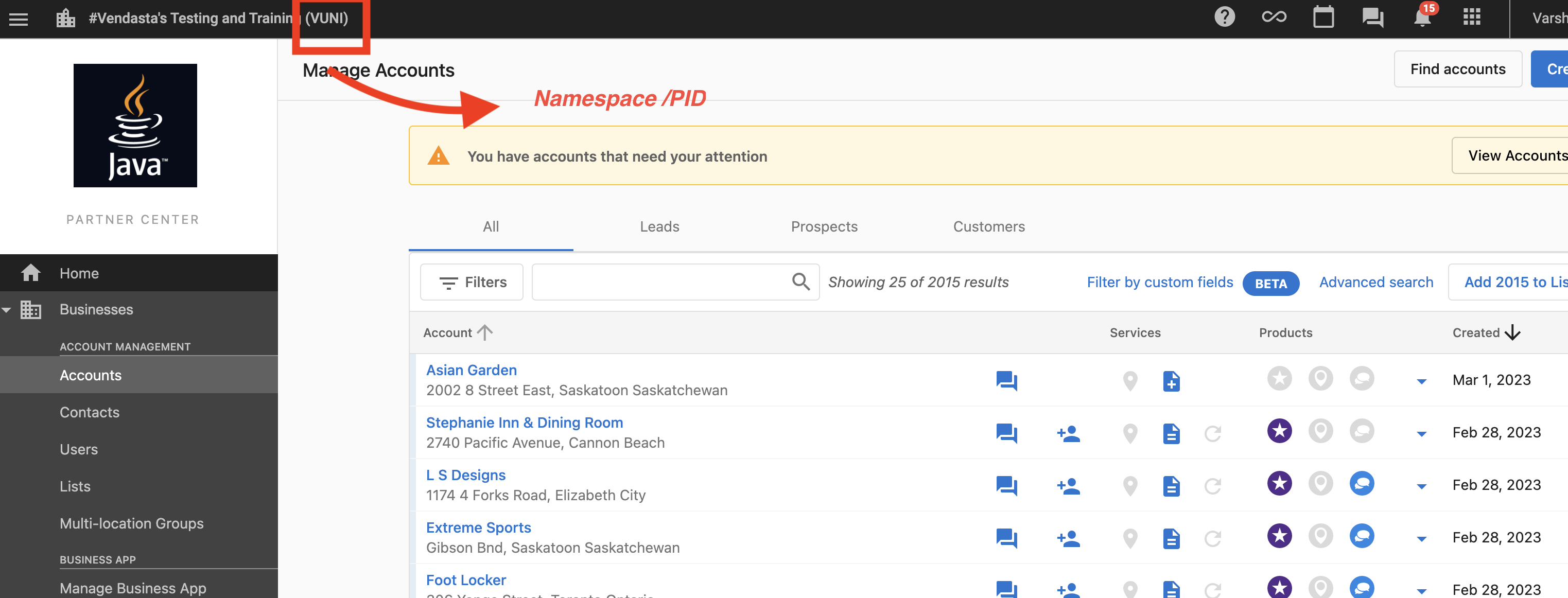

1. Namespace​

You need a namespace which is your Vendasta partner id and it is unique for each partner, this partner id is generated when a new channel partner signs up to Vendasta.


2. Authorization token​

You need a authorization token to access Vendasta APIs which should be generated against your namespace with required scope "user.admin"

info

To create a service account and create a token, see Authorization guide.

Step 2 : Vendasta SCIM Endpoints to sync users​

We support set of fields which is used in our SCIM APIs. Also the System Operation section which will expose all of our supported configurations.

Check for an existing user​

1. By Vendasta ID​

You can search for an existing user by Vendasta id by making a GET request.

If there is no user with the given ID then it would throw an error with "Resource not found" message.

curl -X GET 'https://prod.apigateway.co/scim/{namespace}/Users/{id}' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json'

2. By Email id​

You can search for an existing user by email id by making a GET request.

You use a query named "filter" to filter out using the user Email id

curl -X GET 'https://prod.apigateway.co/scim/{namespace}/Users?filter=userName+eq+%22user%40mail.com%22' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json'

Create User​

When you want to add a new user, then you can use this API to make a POST request to create a new user by providing the required field. After this operation completes, the user will be added.

If the user already exists then it will throw an error.

curl -X POST 'https://prod.apigateway.co/scim/{namespace}/Users' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json' \
  -d '{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "2819c223-7f76-453a-919d-413861904646",
    "externalId": "test-scim-external-id",
    "userName": "barbara@mail.com",
    "name": {
      "familyName": "Jensen",
      "givenName": "Barbara",
      "middleName": "Jane",
      "honorificPrefix": "Ms.",
      "honorificSuffix": "III"
    },
    "nickName": "Babs",
    "profileUrl": "http://example.com",
    "title": "Vice President",
    "userType": "Employee",
    "preferredLanguage": "english",
    "locale": "en-US",
    "timezone": "America/Regina",
    "emails": [
      {"value": "bjensen@example.com", "type": "work", "primary": true}
    ],
    "active": true,
    "password": "1234567A",
    "addresses": [
      {
        "type": "work",
        "streetAddress": "100 Universal City Plaza",
        "locality": "Hollywood",
        "region": "CA-SK",
        "postalCode": "91608",
        "country": "CA",
        "formatted": "100 Universal City Plaza\\nHollywood, CA-SK 91608 CA",
        "primary": true
      }
    ],
    "phoneNumbers": [
      {"value": "+1-306-555-1234", "type": "work"}
    ],
    "meta": {
      "resourceType": "User",
      "created": "2010-01-23T04:56:22Z",
      "lastModified": "2011-05-13T04:42:34Z",
      "version": "W/\"3694e05e9dff591\"",
      "location": "https://example.com/v2/Users/2819c223-7f76-453a-919d-413861904646"
    }
  }'

For full details on the available fields see SCIM Users

info

If another user already exists within your platform with the same email address you will get an error when trying to create a new user.

Search users with different filter options​

You can search users based on various filters by making a GET request. After this operation completes, list of users based on given filters will be returned.

With no filters​

The Endpoint will return all the available Users if we does not provide any filter options

curl -X GET 'https://prod.apigateway.co/scim/{namespace}/Users' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json'

Filter with Email or external id​

You use a query named "filter" to filter out using external ID or the user Email id

curl -X GET 'https://prod.apigateway.co/scim/{namespace}/Users?filter=externalId+eq+%22user_external_id%22+or+userName+eq+%22user%40mail.com%22' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json'

You can even add the count per page, starting index, and sort options

curl -X GET 'https://prod.apigateway.co/scim/{namespace}/Users?count=10&startIndex=1&sortOrder=ascending&sortBy=userName' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json'

You can Customize the attributes in the search Response by providing these query values

curl -X GET 'https://prod.apigateway.co/scim/{namespace}/Users?attributes=id%2CexternalId%2CfamilyName%2CgivenName&excludedAttributes=familyName%2Caddresses' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json'
info

All the query values in Search API is optional

For full details on the available fields see SCIM Users

Update User​

You can update any existing user by making a PATCH request. One or more attributes could be updated by providing operation path and value. After this operation completes, the provided attributes will be updated and all other attributes remains unchanged.

If there is no user with the given ID then it would throw an error.

curl -X PATCH 'https://prod.apigateway.co/scim/{namespace}/Users/{id}' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json' \
  -d '{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations": [
      {
        "op": "Replace",
        "path": "emails[type eq \"work\"].value",
        "value": "updatedEmail@mail.com"
      }
    ]
  }'

For full details on the available fields see SCIM Get User

Replace User​

You can replace any existing user by making a PUT request. After this operation completes, all of the attributes for the user will be replaced with provided value and attributes will be kept blank for which no value is specified.

If there is no user with the given ID then it would throw an error.

curl -X PUT 'https://prod.apigateway.co/scim/{namespace}/Users/{id}' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json' \
  -d '{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "2819c223-7f76-453a-919d-413861904646",
    "externalId": "test-scim-external-id",
    "userName": "barbara@mail.com",
    "name": {
      "familyName": "Jensen",
      "givenName": "Barbara",
      "middleName": "Jane",
      "honorificPrefix": "Ms.",
      "honorificSuffix": "III"
    },
    "nickName": "Babs",
    "profileUrl": "http://example.com",
    "title": "Vice President",
    "userType": "Contractor",
    "preferredLanguage": "english",
    "locale": "en-US",
    "timezone": "America/Regina",
    "emails": [
      {"value": "bjensen@example.com", "type": "work", "primary": true}
    ],
    "active": true,
    "password": "12Av5678",
    "addresses": [
      {
        "type": "work",
        "streetAddress": "100 Universal City Plaza",
        "locality": "Hollywood",
        "region": "CA-SK",
        "postalCode": "91608",
        "country": "CA",
        "formatted": "100 Universal City Plaza\\nHollywood, CA-SK 91608 CA",
        "primary": true
      }
    ],
    "phoneNumbers": [
      {"value": "+1-306-555-1234", "type": "work"}
    ],
    "meta": {
      "resourceType": "User",
      "created": "2010-01-23T04:56:22Z",
      "lastModified": "2011-05-13T04:42:34Z",
      "version": "W/\"3694e05e9dff591\"",
      "location": "https://example.com/v2/Users/2819c223-7f76-453a-919d-413861904646"
    }
  }'

For full details on the available fields see SCIM Get User

Delete User​

You can remove an existing user by making a DELETE request using delete user API with the required field "USER ID" After this operation completes, the user will be removed.

If there is no user with the given ID in that case it would throw an error stating that "Resource not found".

curl -X DELETE 'https://prod.apigateway.co/scim/{namespace}/Users/{id}' \
  -H 'Authorization: Bearer <Access Token with "user.admin" scope>' \
  -H 'Content-Type: application/scim+json'

For full details on the available fields see SCIM Get User

External ID​

It is an external unique identifier of the user in partner side. You can use it as an optional field which will be stored if you wish to have an external unique identifier (should be sent by partner).
